出遅れの感は否めないが（まぁ人柱が多数いるので力強いけど） やっと Guruplug Std. が届いた。
もしかしたら、Plus 注文と間違えられてかも。 一昨日GlobalScale社に「まだ発送しない? 」のメールを送った際に、 「俺が頼んだのは Plus じゃないよ」と付け加えたら翌日に 「明日送るから」っていうメールが入っていたんだ。
熱くなるのは Plus 同様かも。どこまで熱くなるかは、次回。 (週末かな。でも、なんかイベントあったような気がする…)

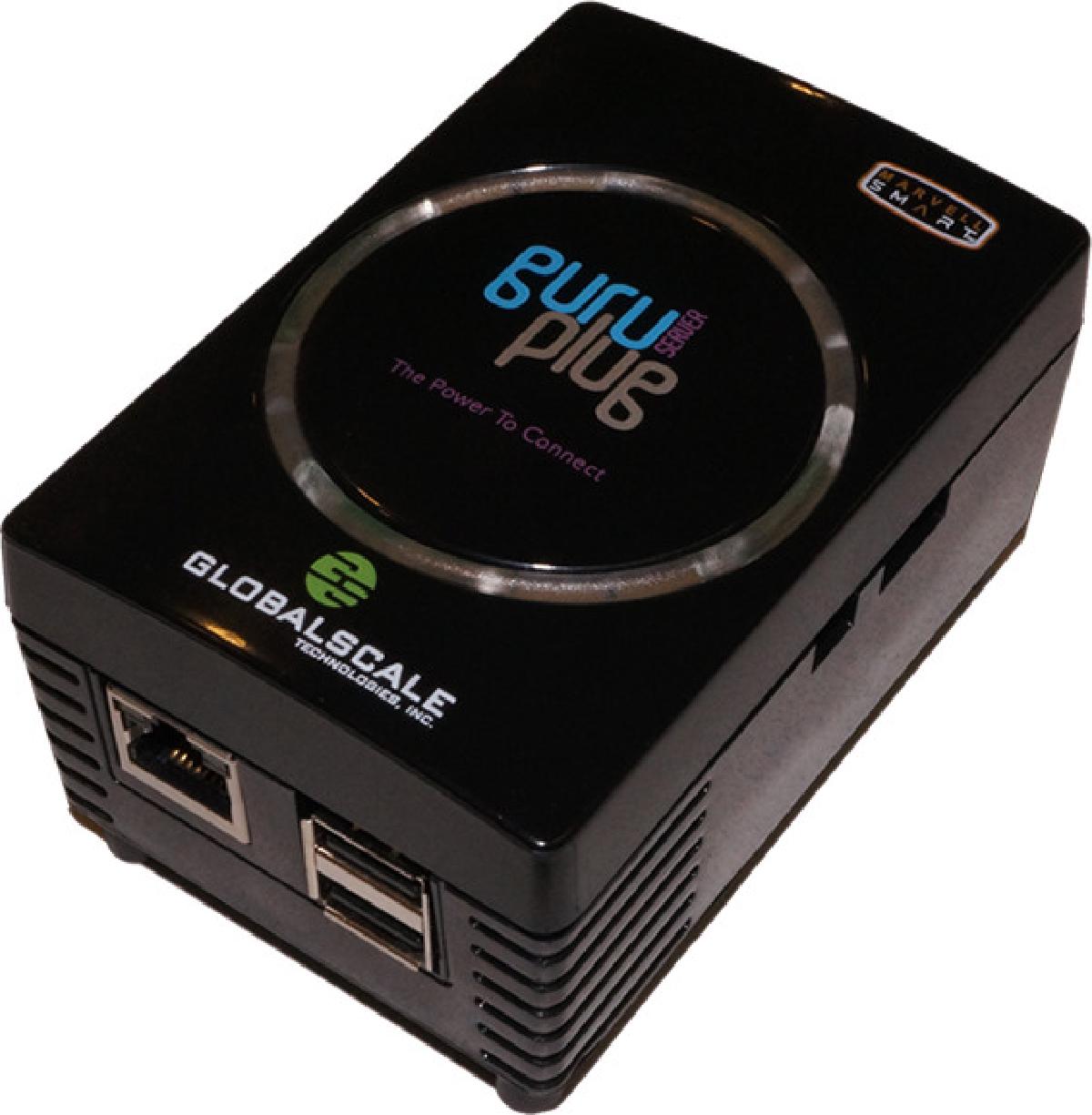

おきまりの first impression ということで、お写真を #
前のブログサイトにアップロードした画像なのでないw
JTAG ボード 1 を繋ぎ、FTDI USB シリアルデバイス(例ではttyUSB0)を確認したら #
usb 2-2: FTDI USB Serial Device converter now attached to ttyUSB0
screen /dev/ttyUSB0 115200 で`screen`コマンドでターミナルをあげておく。
U-Bootの確認
U-Boot 2009.11-rc1-00602-g8e6db3d (Dec 24 2009 - 03:11:17)
Marvell-Plug2
SoC: Kirkwood 88F6281_A0
DRAM: 512 MB
NAND: 512 MiB
In: serial
Out: serial
Err: serial
Net: egiga0
88E1121 Initialized on egiga0
Hit any key to stop autoboot: 3 0
Marvell>> help
? - alias for 'help'
base - print or set address offset
bdinfo - print Board Info structure
boot - boot default, i.e., run 'bootcmd'
bootd - boot default, i.e., run 'bootcmd'
bootm - boot application image from memory
bootp - boot image via network using BOOTP/TFTP protocol
cmp - memory compare
coninfo - print console devices and information
cp - memory copy
crc32 - checksum calculation
dhcp - boot image via network using DHCP/TFTP protocol
echo - echo args to console
editenv - edit environment variable
fatinfo - print information about filesystem
fatload - load binary file from a dos filesystem
fatls - list files in a directory (default /)
go - start application at address 'addr'
help - print command description/usage
iminfo - print header information for application image
imxtract- extract a part of a multi-image
itest - return true/false on integer compare
loadb - load binary file over serial line (kermit mode)
loads - load S-Record file over serial line
loady - load binary file over serial line (ymodem mode)
loop - infinite loop on address range
md - memory display
mm - memory modify (auto-incrementing address)
mtest - simple RAM read/write test
mw - memory write (fill)
nand - NAND sub-system
nboot - boot from NAND device
nfs - boot image via network using NFS protocol
nm - memory modify (constant address)
ping - send ICMP ECHO_REQUEST to network host
printenv- print environment variables
rarpboot- boot image via network using RARP/TFTP protocol
reset - Perform RESET of the CPU
run - run commands in an environment variable
saveenv - save environment variables to persistent storage
setenv - set environment variables
sleep - delay execution for some time
source - run script from memory
tftpboot- boot image via network using TFTP protocol
usb - USB sub-system
usbboot - boot from USB device
version - print monitor version
Marvell>> version
U-Boot 2009.11-rc1-00602-g8e6db3d (Dec 24 2009 - 03:11:17)
Marvell-Plug2
Marvell>> printenv
bootcmd=${x_bootcmd_ethernet}; ${x_bootcmd_usb}; ${x_bootcmd_kernel}; setenv bootargs ${x_bootargs} ${x_bootargs_root}; bootm 0x6400000;
bootdelay=3
baudrate=115200
x_bootcmd_ethernet=ping 192.168.2.1
x_bootcmd_usb=usb start
x_bootcmd_kernel=nand read.e 0x6400000 0x100000 0x400000
x_bootargs=console=ttyS0,115200
x_bootargs_root=ubi.mtd=2 root=ubi0:rootfs rootfstype=ubifs
ethact=egiga0
ethaddr=00:50:43:01:9C:DB
stdin=serial
stdout=serial
stderr=serial
Environment size: 455/131068 bytes
bootしてみましょ
いい感じの速度感。悪くないな。
U-Boot 2009.11-rc1-00602-g8e6db3d (Dec 24 2009 - 03:11:17)
Marvell-Plug2
SoC: Kirkwood 88F6281_A0
DRAM: 512 MB
NAND: 512 MiB
In: serial
Out: serial
Err: serial
Net: egiga0
88E1121 Initialized on egiga0
Hit any key to stop autoboot: 3 2 1 0
No link on egiga0
ping failed; host 192.168.2.1 is not alive
(Re)start USB...
USB: Register 10011 NbrPorts 1
USB EHCI 1.00
scanning bus for devices... 2 USB Device(s) found
scanning bus for storage devices... 0 Storage Device(s) found
NAND read: device 0 offset 0x100000, size 0x400000
4194304 bytes read: OK
## Booting kernel from Legacy Image at 06400000 ...
Image Name: Linux-2.6.32-00007-g56678ec
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 2789748 Bytes = 2.7 MB
Load Address: 00008000
Entry Point: 00008000
Verifying Checksum ... OK
Loading Kernel Image ... OK
OK
Starting kernel ...
Uncompressing Linux.................................................................................................................................................................................... done, booting the kernel.
Linux version 2.6.32-00007-g56678ec ([email protected]) (gcc version 4.1.2 20070925 (Red Hat 4.1.2-33.fa1)) #1 PREEMPT Thu Dec 24 03:15:48 PST 2009
CPU: Feroceon 88FR131 [56251311] revision 1 (ARMv5TE), cr=00053977
CPU: VIVT data cache, VIVT instruction cache
Machine: Marvell Plug2 Reference Board
Memory policy: ECC disabled, Data cache writeback
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 130048
Kernel command line: console=ttyS0,115200 ubi.mtd=2 root=ubi0:rootfs rootfstype=ubifs
PID hash table entries: 2048 (order: 1, 8192 bytes)
Dentry cache hash table entries: 65536 (order: 6, 262144 bytes)
Inode-cache hash table entries: 32768 (order: 5, 131072 bytes)
Memory: 256MB 256MB = 512MB total
Memory: 513024KB available (5144K code, 1034K data, 148K init, 0K highmem)
SLUB: Genslabs=11, HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
Hierarchical RCU implementation.
NR_IRQS:114
Console: colour dummy device 80x30
Calibrating delay loop... 1192.75 BogoMIPS (lpj=5963776)
Mount-cache hash table entries: 512
CPU: Testing write buffer coherency: ok
NET: Registered protocol family 16
Kirkwood: MV88F6281-A1, TCLK=200000000.
Feroceon L2: Cache support initialised.
bio: create slab <bio-0> at 0
vgaarb: loaded
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
cfg80211: Using static regulatory domain info
cfg80211: Regulatory domain: US
(start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp)
(2402000 KHz - 2472000 KHz @ 40000 KHz), (600 mBi, 2700 mBm)
(5170000 KHz - 5190000 KHz @ 40000 KHz), (600 mBi, 2300 mBm)
(5190000 KHz - 5210000 KHz @ 40000 KHz), (600 mBi, 2300 mBm)
(5210000 KHz - 5230000 KHz @ 40000 KHz), (600 mBi, 2300 mBm)
(5230000 KHz - 5330000 KHz @ 40000 KHz), (600 mBi, 2300 mBm)
(5735000 KHz - 5835000 KHz @ 40000 KHz), (600 mBi, 3000 mBm)
cfg80211: Calling CRDA for country: US
Switching to clocksource orion_clocksource
NET: Registered protocol family 2
IP route cache hash table entries: 4096 (order: 2, 16384 bytes)
TCP established hash table entries: 16384 (order: 5, 131072 bytes)
TCP bind hash table entries: 16384 (order: 4, 65536 bytes)
TCP: Hash tables configured (established 16384 bind 16384)
TCP reno registered
NET: Registered protocol family 1
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
RPC: Registered tcp NFSv4.1 backchannel transport module.
JFFS2 version 2.2. (NAND) 息 2001-2006 Red Hat, Inc.
JFS: nTxBlock = 4010, nTxLock = 32080
msgmni has been set to 1002
alg: No test for stdrng (krng)
io scheduler noop registered
io scheduler anticipatory registered
io scheduler deadline registered
io scheduler cfq registered (default)
Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled
serial8250.0: ttyS0 at MMIO 0xf1012000 (irq = 33) is a 16550A
console [ttyS0] enabled
brd: module loaded
loop: module loaded
NAND device: Manufacturer ID: 0xec, Chip ID: 0xdc (Samsung NAND 512MiB 3,3V 8-bit)
Scanning device for bad blocks
Creating 3 MTD partitions on "orion_nand":
0x000000000000-0x000000100000 : "u-boot"
0x000000100000-0x000000500000 : "uImage"
0x000000500000-0x000020000000 : "root"
UBI: attaching mtd2 to ubi0
UBI: physical eraseblock size: 131072 bytes (128 KiB)
UBI: logical eraseblock size: 129024 bytes
UBI: smallest flash I/O unit: 2048
UBI: sub-page size: 512
UBI: VID header offset: 512 (aligned 512)
UBI: data offset: 2048
UBI: attached mtd2 to ubi0
UBI: MTD device name: "root"
UBI: MTD device size: 507 MiB
UBI: number of good PEBs: 4056
UBI: number of bad PEBs: 0
UBI: max. allowed volumes: 128
UBI: wear-leveling threshold: 4096
UBI: number of internal volumes: 1
UBI: number of user volumes: 1
UBI: available PEBs: 0
UBI: total number of reserved PEBs: 4056
UBI: number of PEBs reserved for bad PEB handling: 40
UBI: max/mean erase counter: 2/0
UBI: image sequence number: 0
UBI: background thread "ubi_bgt0d" started, PID 447
MV-643xx 10/100/1000 ethernet driver version 1.4
mv643xx_eth smi: probed
net eth0: port 0 with MAC address 00:50:43:01:9c:db
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
orion-ehci orion-ehci.0: Marvell Orion EHCI
orion-ehci orion-ehci.0: new USB bus registered, assigned bus number 1
orion-ehci orion-ehci.0: irq 19, io mem 0xf1050000
orion-ehci orion-ehci.0: USB 2.0 started, EHCI 1.00
usb usb1: configuration #1 chosen from 1 choice
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
Initializing USB Mass Storage driver...
usbcore: registered new interface driver usb-storage
USB Mass Storage support registered.
usbcore: registered new interface driver ums-datafab
usbcore: registered new interface driver ums-freecom
usbcore: registered new interface driver ums-jumpshot
usbcore: registered new interface driver ums-sddr09
usbcore: registered new interface driver ums-sddr55
mice: PS/2 mouse device common for all mice
rtc-mv rtc-mv: rtc core: registered rtc-mv as rtc0
i2c /dev entries driver
cpuidle: using governor ladder
cpuidle: using governor menu
sdhci: Secure Digital Host Controller Interface driver
sdhci: Copyright(c) Pierre Ossman
mmc0: mvsdio driver initialized, lacking card detect (fall back to polling)
Registered led device: plug2:red:health
Registered led device: plug2:green:health
Registered led device: plug2:red:wmode
Registered led device: plug2:green:wmode
mv_xor_shared mv_xor_shared.0: Marvell shared XOR driver
mv_xor_shared mv_xor_shared.1: Marvell shared XOR driver
mmc0: new high speed SDIO card at address 0001
mv_xor mv_xor.0: Marvell XOR: ( xor cpy )
mv_xor mv_xor.1: Marvell XOR: ( xor fill cpy )
mv_xor mv_xor.2: Marvell XOR: ( xor cpy )
mv_xor mv_xor.3: Marvell XOR: ( xor fill cpy )
usbcore: registered new interface driver usbhid
usbhid: v2.6:USB HID core driver
oprofile: using timer interrupt.
TCP cubic registered
NET: Registered protocol family 17
lib80211: common routines for IEEE802.11 drivers
rtc-mv rtc-mv: setting system clock to 2078-08-07 07:32:50 UTC (3427083170)
usb 1-1: new high speed USB device using orion-ehci and address 2
UBIFS: mounted UBI device 0, volume 0, name "rootfs"
UBIFS: file system size: 516225024 bytes (504126 KiB, 492 MiB, 4001 LEBs)
UBIFS: journal size: 9033728 bytes (8822 KiB, 8 MiB, 71 LEBs)
UBIFS: media format: w4/r0 (latest is w4/r0)
UBIFS: default compressor: zlib
UBIFS: reserved for root: 0 bytes (0 KiB)
VFS: Mounted root (ubifs filesystem) on device 0:13.
Freeing init memory: 148K
usb 1-1: configuration #1 chosen from 1 choice
hub 1-1:1.0: USB hub found
hub 1-1:1.0: 4 ports detected
INIT: version 2.86 booting
Starting the hotplug events dispatcher: udevd.
Synthesizing the initial hotplug events...done.
Waiting for /dev to be fully populated...Bluetooth: Core ver 2.15
NET: Registered protocol family 31
Bluetooth: HCI device and connection manager initialized
Bluetooth: HCI socket layer initialized
libertas_sdio: Libertas SDIO driver
libertas_sdio: Copyright Pierre Ossman
libertas_sdio mmc0:0001:1: firmware: requesting sd8688_helper.bin
libertas: can't load helper firmware
libertas: failed to load helper firmware
libertas_sdio: probe of mmc0:0001:1 failed with error -2
Bluetooth: vendor=0x2df, device=0x9105, class=255, fn=2
btmrvl_sdio mmc0:0001:2: firmware: requesting sd8688_helper.bin
btmrvl_sdio_download_helper: request_firmware(helper) failed, error code = -2
btmrvl_sdio_download_fw: Failed to download helper!
btmrvl_sdio_probe: Downloading firmware failed!
done.
Setting the system clock.
The Hardware Clock does not contain a valid time, so we cannot set the System Time from it.
Unable to set system clock.
Unable to set System Clock to: Thu Jul 2 01:04:39 UTC 1942 [33m(warning).[39;49m
Activating swap...done.
Setting the system clock.
The Hardware Clock does not contain a valid time, so we cannot set the System Time from it.
Unable to set system clock.
Unable to set System Clock to: Thu Jul 2 01:04:40 UTC 1942 [33m(warning).[39;49m
Cleaning up ifupdown....
Loading kernel modules...done.
Checking file systems...fsck 1.41.3 (12-Oct-2008)
done.
Setting kernel variables (/etc/sysctl.conf)...done.
Mounting local filesystems...done.
Activating swapfile swap...done.
Setting up networking....
Configuring network interfaces...done.
Starting portmap daemon....
Setting console screen modes and fonts.
cannot (un)set powersave mode
[9;30][14;30]Setting up ALSA...done (none loaded).
INIT: Entering runlevel: 2
Starting enhanced syslogd: rsyslogd.
Starting system message bus: dbus.
Starting OpenBSD Secure Shell server: sshdNET: Registered protocol family 10
.
Starting MySQL database server: mysqld.
Checking for corrupt, not cleanly closed and upgrade needing tables..
Starting MTA: exim4.
ALERT: exim paniclog /var/log/exim4/paniclog has non-zero size, mail system possibly broken [31mfailed![39;49m
Starting Network Interface Plugging Daemon:ADDRCONF(NETDEV_UP): eth0: link is not ready
eth0.
Starting web server: lighttpd.
Starting internet superserver: inetd.
Starting Samba daemons: nmbd smbd.
Starting file alteration monitor: FAM.
Starting Hardware abstraction layer: hald.
Starting periodic command scheduler: crond.
uap_probe: vendor=0x02DF device=0x9104 class=0 function=1
uap_sdio mmc0:0001:1: firmware: requesting mrvl/helper_sd.bin
uap_sdio mmc0:0001:1: firmware: requesting mrvl/sd8688_ap.bin
UAP FW is active
ADDRCONF(NETDEV_UP): uap0: link is not ready
SSID setting successful
BSS started!
ip_tables: (C) 2000-2006 Netfilter Core Team
nf_conntrack version 0.5.0 (8022 buckets, 32088 max)
CONFIG_NF_CT_ACCT is deprecated and will be removed soon. Please use
nf_conntrack.acct=1 kernel parameter, acct=1 nf_conntrack module option or
sysctl net.netfilter.nf_conntrack_acct=1 to enable it.
Starting very small DHCP server: udhcpd (v0.9.9-pre) started
udhcpd.
Starting DNS forwarder and DHCP server: dnsmasq.
Starting bluetooth: bluetoothdBluetooth: L2CAP ver 2.14
Bluetooth: L2CAP socket layer initialized
Bluetooth: RFCOMM TTY layer initialized
Bluetooth: RFCOMM socket layer initialized
Bluetooth: RFCOMM ver 1.11
.
Bluetooth: BNEP (Ethernet Emulation) ver 1.3
Bluetooth: vendor=0x2df, device=0x9105, class=255, fn=2
Bridge firewalling registered
Bluetooth: SCO (Voice Link) ver 0.6
Bluetooth: SCO socket layer initialized
Agent registered
Debian GNU/Linux 5.0 sheevaplug-debian ttyS0
sheevaplug-debian login: root
Password:
Last login: Thu Jul 2 01:04:00 UTC 1942 on ttyS0
Linux sheevaplug-debian 2.6.32-00007-g56678ec #1 PREEMPT Thu Dec 24 03:15:48 PST 2009 armv5tel
The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.
Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
-
先行予約は JTAGボードが無料でついてくるんだけど、PC-BOX JTAGボードが必需なんだな。後発で買った人は工作するか、諦めるか。もっとも必要のない人だっているから、どうだとは言い切れないが。 ↩︎
